HI-2579LCIF — Holt MIL-STD-1553/1760 Dual Transceiver Two bus channels and integrated transformers in one low-profile package. Price: USD 757/pc | DC: 24+ 3.3V single supply | Dual-redundant MIL-STD-1553 interface 24-pin LCC | −40°C to +85°C industrial grade For FPGA-based 1553 interfaces, integrating the transceivers and transformers helps save board space and reduce component count. The FPGA or a dedicated protocol IC handles the protocol logic. Looking for this exact part number? DM me with your required quantity and date-code requirements.

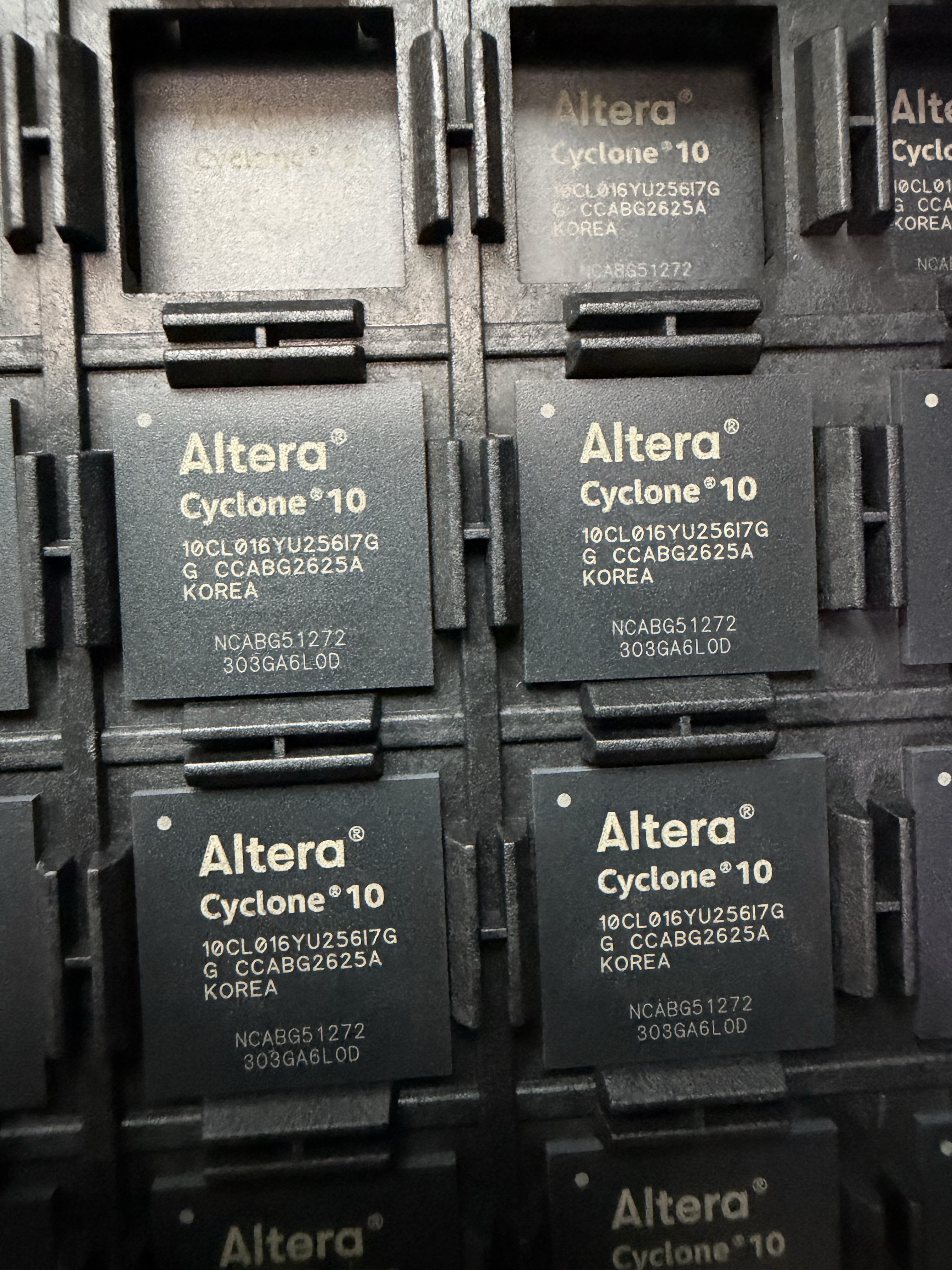

Altera 10CL016YU256I7G Cyclone 10 LP FPGA $36 each, DC26+, Shenzhen stock 15,408 LEs, 504Kbit M9K memory, 56 × 18×18 multipliers, 4 PLLs and 162 I/Os in a 14 × 14mm U256 package. A Tsinghua OS course project used the C8G version of the same 10CL016/U256 device to build a custom multi-cycle CPU and run a lightweight OS—complete with a BootLoader, UART I/O, timer interrupts and serial interrupts. This 2026 batch already carries the new Altera top mark, part of the Cyclone 10 marking transition away from the previous Intel branding.

XC7Z035-2FFG676I AMD Xilinx Zynq-7000 SoC FPGA Price: USD 97 ｜ Date code: 26+ Dual-core Arm Cortex-A9 + 275K logic cells 900 DSP slices ｜ 8 GTX transceivers in FFG676 Industrial grade A good fit for SDR, high-speed data acquisition, PCIe, video processing, industrial control, and ARM + FPGA acceleration. A real example: the Z-7035 is used in ADI’s ADRV9361-Z7035 2×2 SDR platform. On custom boards, most bring-up time usually goes into PS DDR, boot flow, PS-PL AXI, GTX clocks, JESD / PCIe links, and Vivado timing constraints

AG10KL144 AGM Micro Low-Cost FPGA Price: USD 2.5 ｜ Date code: 26+ ｜ Stock available in Shenzhen 10K logic elements Up to 414 Kbit embedded RAM 23 embedded 18 × 18 multipliers 2 PLLs, LVDS support LQFP-144 package A practical choice for protocol bridging, display timing, video interface conversion, industrial control, and test equipment where a larger FPGA would be unnecessary. On real boards, most of the work usually goes into I/O voltage planning, PLL clocks, pin assignments, timing constraints, and getting JTAG or SPI configuration to boot reliably

I’m not exaggerating. Back in March, the AD9361BBCZ was only around $70, but now the average market price has risen to over $200

As demand from AI and robotics continues to grow, the shortage of high-end capacitors will become increasingly severe. Another reason for my view is that I’m based in Huaqiangbei, where I can clearly see middlemen aggressively speculating on capacitors and driving up prices

LIFCL-40-8BG400C Lattice CrossLink-NX FPGA 39K logic cells ｜ Dual hard MIPI D-PHY ｜ PCIe Gen2 Price: USD 31.34 ｜ Date code: 2047 ｜ Stock available in Shenzhen Often used in multi-camera aggregation, MIPI CSI-2 bridging, camera interface conversion, and compact embedded vision systems. On real boards, most of the setup time usually goes into D-PHY lane mapping, virtual channels, pixel clocking, and finding the right Radiant/IP version combination.

10CL016YU256C8G — Cyclone 10 LP Low-Power FPGA Low cost, sufficient resources, and stable for mass production. Available stock: 9 full packages, 714 pcs per package. Some are irregular full packages. Fresh date code: 26+

CXDQ3A8AM-CJ-A CXMT DDR4 SDRAM 8Gbit DDR4 memory 1.14V to 1.26V supply range 1.6GHz clock, DDR4-3200 class FBGA-78 package 0°C to +95°C operating range Supports ODT, CRC, ZQ calibration, auto precharge, and asynchronous reset Price: USD 18 ｜ Date code: 23+ A practical fit for embedded computing, networking boards, industrial control, NVR/IP camera systems, ARM SoM platforms, and FPGA/SoC designs that still use discrete DDR4 memory. Real bring-up is usually not about the DRAM capacity itself. The hard part is DDR4 layout, impedance control, length matching, Vref/VTT setup, power sequencing, memory controller training, and validating compatibility against Micron/Samsung/SK hynix-based original designs

LTM2884IY#PBF ADI / Linear Technology Isolated USB μModule USB Full-Speed / Low-Speed: 12 Mbps / 1.5 Mbps 2500VRMS isolation + integrated isolated DC/DC 1W bus-powered or up to 2.5W with external supply 44-lead BGA, industrial grade (-40°C to +85°C) Price: USD 25 ｜ Date code: 17+ Great for breaking USB ground loops in industrial/medical instruments, data acquisition, and isolated test interfaces. Real-world trap: “USB 2.0 compatible” does not mean 480 Mbps High-Speed. Check peripheral speed, downstream power budget, and EMI/layout first.

XC7K325T-2FFG900I AMD Xilinx Kintex-7 FPGA 326K logic cells, 840 DSP slices 16 GTX transceivers, industrial grade Price: USD 41.8 ｜ Date code: 25+ Commonly used for high-speed data acquisition: FMC ADC/DAC capture, real-time DSP, DDR3 buffering, and PCIe or 10GbE transport. Real bring-up usually comes down to GTX clocks, DDR3/MIG calibration, and timing constraints

XC7Z020-2CLG400I AMD Xilinx Zynq-7000 SoC FPGA Dual-core ARM Cortex-A9 + Artix-7 class FPGA fabric ~85K logic cells, 220 DSP slices, ~4.9 Mb Block RAM CLG400 package, -2 speed grade, industrial temp grade Price: USD 22.48 ｜ Date code: 24+ ｜ Stock available in Shenzhen A strong fit for embedded Linux, industrial control, machine vision, motor control, edge I/O, and ARM + FPGA acceleration designs. This Z-7020 class is widely seen in boards like Zybo Z7-20 and PYNQ-Z2, where Linux, Ethernet/USB, DDR3, HDMI, and FPGA logic are combined on one platform. Real bring-up usually comes down to PS DDR setup, FSBL / boot mode, QSPI or SD boot, device tree, pin mux, PS-PL AXI bridges, clock/reset planning, and XDC constraints. Most issues are not about raw logic capacity, but about getting the ARM side and FPGA fabric to work cleanly together.
